| •External sheet metal thickness 0.6 mm GI. |
| •Internal sheet metal thickness.6 mm aluminum. |
| •Pure polyester powder coated @ 80 micron suitable for external finish. |
| •Lining of Puf thick 150/ 180 mm. |
| •Temperature resistance up to 60 to -180 oC. |
| •Foundation frame 100 mm “C” channel 3 mm as per IS513 grade D. |
| •Supporting structure suspensions MS 3mm thick HR powder coated sheets. |
| •Puf density 40 kg / m3.
|

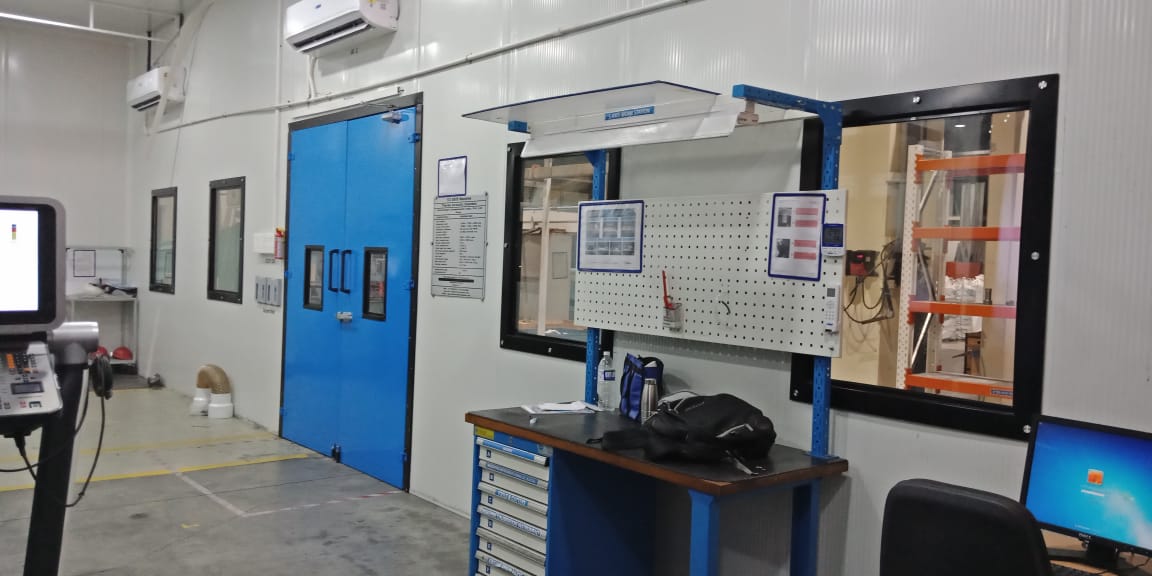

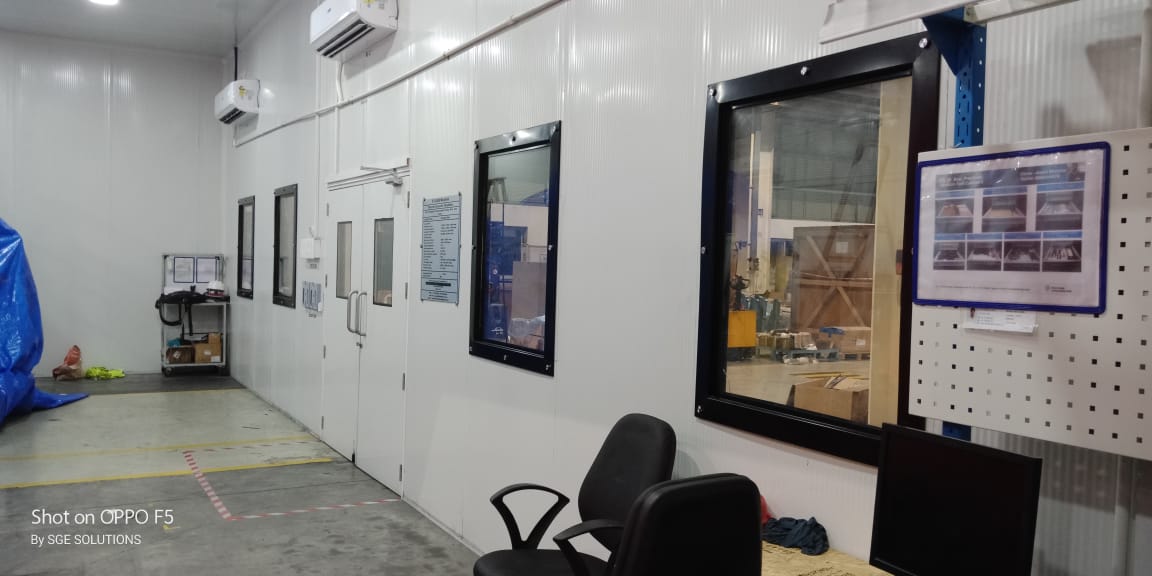

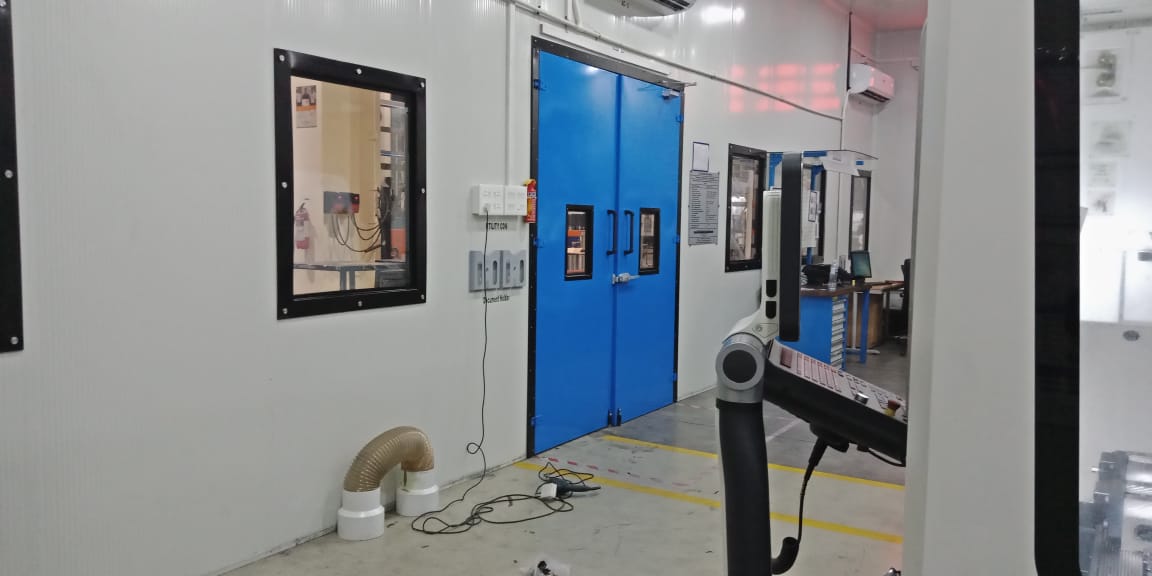

| •Inspection window on door with safety glasses ‘L’ shape double layer with organ gas filling. |
| •Weight bearing capacity roof section 200 kg/m2 |
| •Insulation details core material. |
| •A core of CFC free rigid poly urethane foam with typical physical properties. |
| •Density 40 kg / m3. |
| •Coefficient of conductivity = 0.023W/mK |
| •Tensile strength = 0.10N/mm2. |
| •Compressive strength 0.10N/nm2. |
| •Tensile modules = 3N / mm2. |
| •Compression modules=3N/mm2. |
| •Dimensional stability @ 80OC and @20 OC=2%. |
| •Additional Information: |
| •Delivery Time: 6-8 weeks |
