| Overhaul dimension customised |
| Inner dimension customised actual work space. |
| Lining of mineral wool thick 150 each side |
| Acoustic slab thickness 50 mm in FR grade |
| MDF panels 8 mm @ 400kg density |
| Acoustic foam 50 mm thick @ 30 kg density |

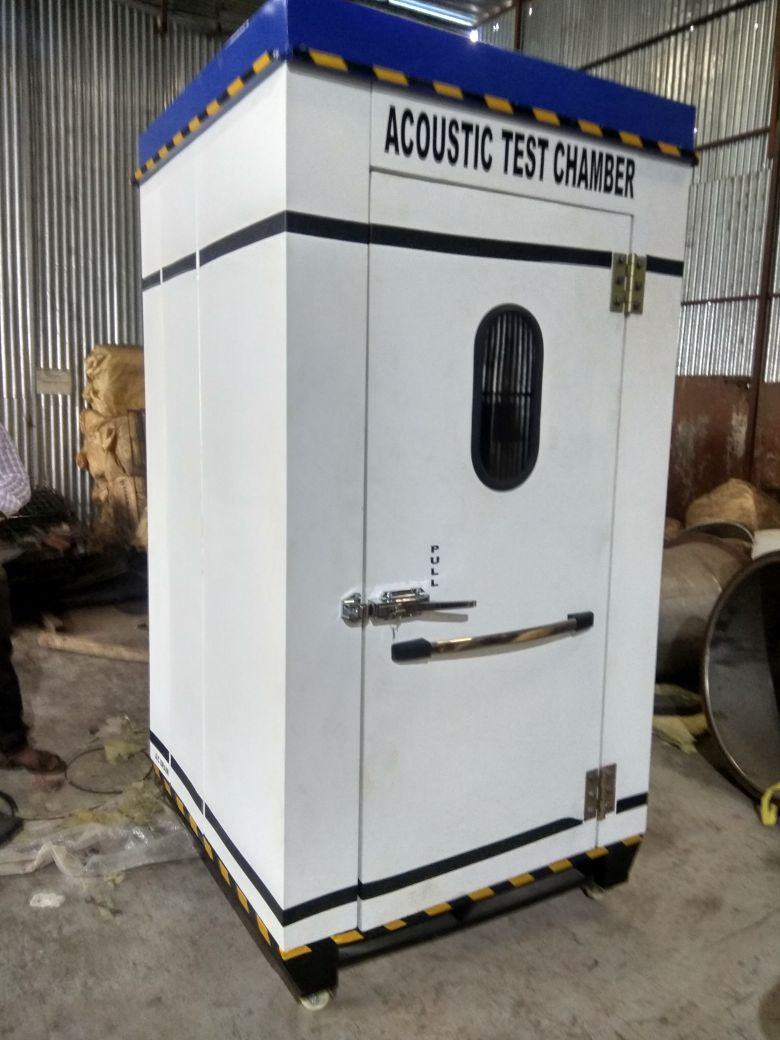

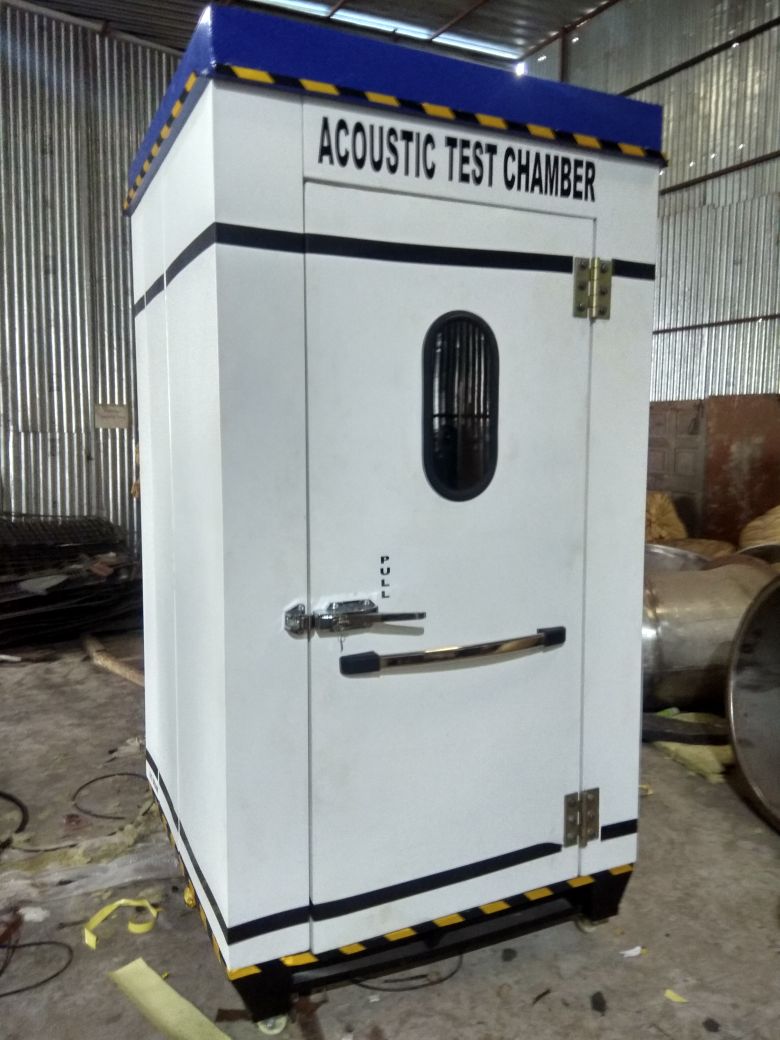

| DGU Glasses for inspection window double layer. 6 mm thk |

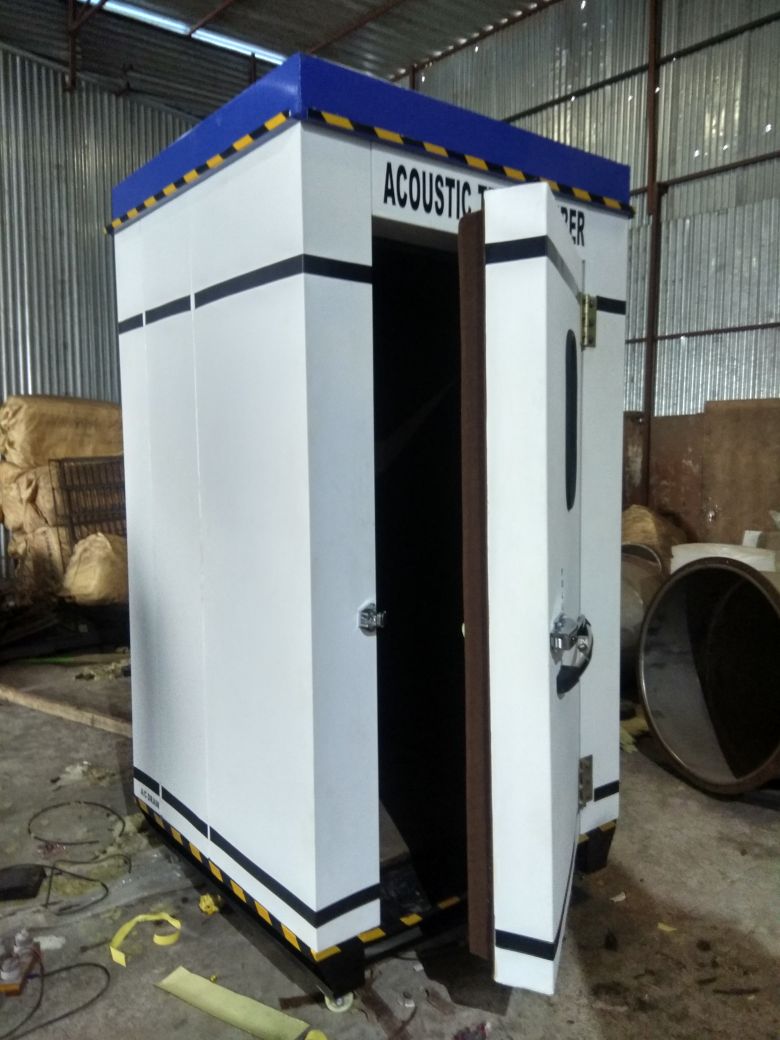

| Opening doors single leaf Hinges type on the front side of the enclosure opening angle 170 degree |
| Dimension of human entry doors 1800 x 900 x 130 mm single leaf hinge type. |
| Dimension of material entry doors 900 x 1400 x 120 mm single leaf sliding type motorized |
| Temperature resistance up – to 100 oC. |
| Foundation frame 150 mm “C” channel sheet metal 3 mm. |
| Body 1.6 / 2 mm CARC powder coated is in metallic panels. |
| Mounting structure HR 3 mm thick structure base frame. |
| Mineral wool / foam Slab density 48/64/96 , kg / m3 |
| Lumen inside for proper visibility 1000 Lux level |
| Compression locks & heavy duty hinges in ss pressure dye casting |
| All the hardware in GI plated for inner application |
| All the external hardware is in SS 304 to prevent it from rust. |
| All the electrical Wiring & connectors Accessories are of STD make and FR grade as per details attached |
| Inner work table 500 x 650 mm mounted on 650 mm height from inner floor. Rubber anti skid and non reflective mate 5 mm thk for flooring covered with acoustic fabric. |
